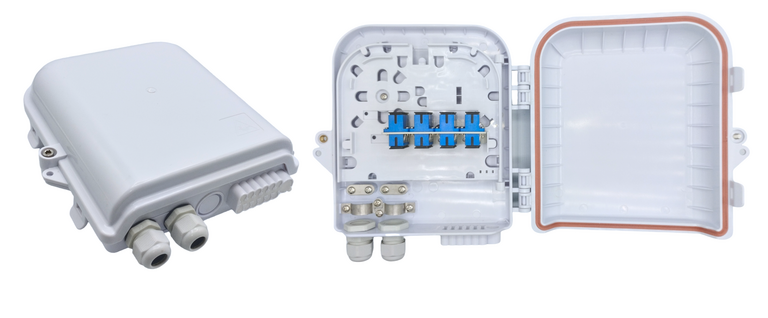

OPTICAL TERMINATION BOX (OTB) –
12 PORT OUTDOOR
The FiberCore Optical Termination Box (OTB) – 12 Port Outdoor is a weather-resistant fiber distribution enclosure designed to provide secure fiber termination, splicing, and distribution for outdoor FTTx deployments. Supporting up to twelve SC, LC, FC, or ST adapters, it combines fiber management, cable routing, and optional PLC splitter installation in a durable UV-resistant ABS enclosure.
Designed for both wall-mounted and pole-mounted installations, the enclosure offers dependable protection against dust, rain, and environmental exposure through its IP65-rated construction, making it ideal for FTTH, CATV, telecommunications, and enterprise data networks.
| Specification | Details |
| Model | FC-45-OTB-O12 |
| Capacity | Up to 12 Fibers |
| Adapter Capacity | 12 SC Simplex/ 12 FC Simplex / 6 LC Duplex |
| Material | UV-resistant ABS Plastic |
| Color | Light Grey |
| Dimensions | 207 × 231 × 67 mm |
| Cable Entry Ports | 2 (M20 Cable Glands) |
| Drop Cable Ports | 12 |
| Protection Rating | IP65 |
| Installation | Wall Mount / Pole Mount |
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | ≤95% (Non-condensing) |
