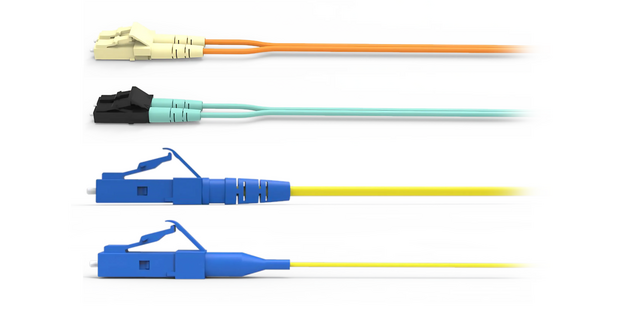

FIBER PATCHCORD DUPLEX UPC/APC
Standard Patch Cords
The Fiber Patchcord Duplex UPC/APC is a high-quality fiber optic connectivity solution designed for reliable signal transmission in data centers, telecommunications, and structured cabling applications. Available in multiple connector types, fiber modes, and customizable lengths, it delivers low insertion loss, excellent return loss performance, and dependable connectivity for modern fiber networks.
SPECIFICATION | DETAILS |
Product Type | Standard Patch Cords |
Fiber Count | 2F |
Fiber Category | Single-mode OS2 / Multimode OM1 62.5μm / OM2 / OM3 / OM4 / OM5 50μm |
Connector Type | LC Duplex, SC Duplex, Standard Dust Caps |
Fiber Mode | UPC / APC |
Available Colors | Orange / Aqua / Magenta / Lime Green / Yellow |
Outer Jacket Size | 1.6mm / 2.0mm / 3.0mm |
CONNECTOR TYPE | MAX IL | RETURN LOSS (RL) |
Single-mode LC | 0.20 dB | ≥55 dB |
Single-mode LC/APC | 0.20 dB | ≥65 dB |
Single-mode SC | 0.20 dB | ≥55 dB |
Single-mode SC/APC | 0.20 dB | ≥65 dB |
Single-mode ST | 0.20 dB | ≥55 dB |
Single-mode FC | 0.20 dB | ≥55 dB |
Single-mode FC/APC | 0.20 dB | ≥65 dB |
Single-mode MTRJ | 0.75 dB | ≥65 dB |
Multimode LC | 0.20 dB | ≥40 dB |
Multimode SC | 0.20 dB | ≥25 dB |
Multimode ST | 0.20 dB | ≥25 dB |
Multimode FC | 0.20 dB | ≥25 dB |
