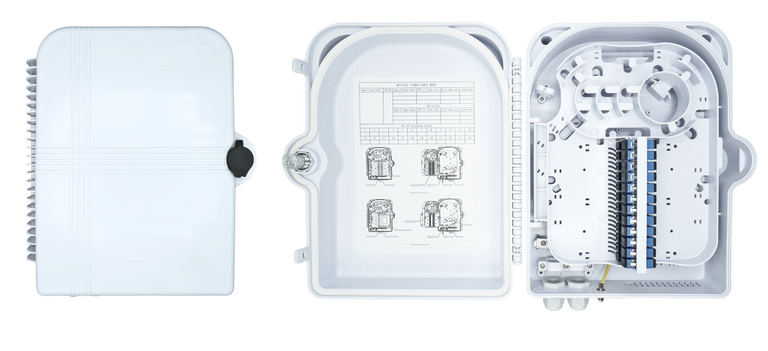

OPTICAL TERMINATION BOX (OTB) –
24 PORT OUTDOOR

The FiberCore Optical Termination Box (OTB) – 24 Port Outdoor is a high-capacity outdoor fiber distribution enclosure designed for FTTx networks requiring secure fiber splicing, termination, and distribution. Supporting up to twenty-four SC, LC, FC, or ST adapters, the enclosure accommodates optional PLC splitter installation while providing organized fiber routing within a durable ABS housing.
Engineered with IP65-rated weather protection and flexible wall- or pole-mounted installation, the enclosure delivers dependable performance for FTTH, CATV, telecommunication, and enterprise data communication networks.
| Specification | Details |
| Model | FC-45-OTB-O12 |
| Capacity | Up to 12 Fibers |
| Adapter Capacity | 12 SC Simplex/ 12 FC Simplex / 6 LC Duplex |
| Material | Outdoor-grade ABS Plastic |
| Color | Light Grey |
| Dimensions | 274.3 × 313.4 × 114.1 mm |
| Cable Entry Ports | 2 |
| Drop Cable Ports | 24 |
| Protection Rating | IP65 |
| Installation | Wall Mount / Pole Mount |
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | ≤95% (Non-condensing) |
