3U RACK MOUNT

SLIDING TYPE ODF

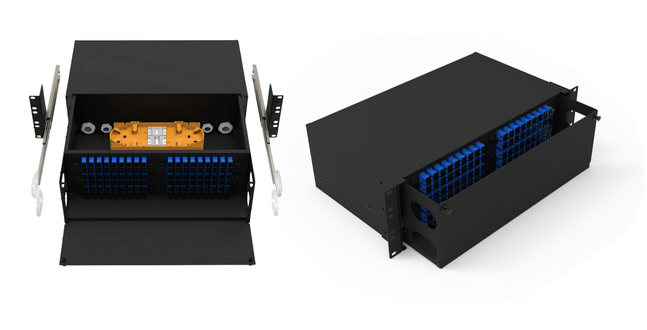

3U Rack Mount Sliding Type

Optical Distribution Frame (ODF)



The FiberCore 3U Rack Mount Sliding Type Optical Distribution Frame (ODF) is designed for high-density fiber distribution in standard 19-inch server cabinets. It supports up to 108 cores using SC simplex adapters and can be expanded for LC, FC, and ST adapter configurations.


  • Standard 19“
  • 3U up to 108F using SC adapter
  • Mounting Bracket
  • Three section stainless steel rails, independent, & sliding bottom box
  • Waterproof connector cable entry
  • 175-type adaptor plate
  • Different plates and adapters can be loaded (LC/SC/FC/ST)
  • High quality sheet metal technology and mist spray



  • Data Centers
  • Computer Centers
  • Machine Rooms
  • Database Facilities


  • Size: 482.6mm × 325.6mm × 132.5mm
  • Surface: Powder-coated black
  • Maximum Capacity:
    • SC/ST/FC: Up to 108 cores
    • LC: Up to 216 cores
