OPTICAL TERMINATION BOX (OTB) –

4 PORT OUTDOOR

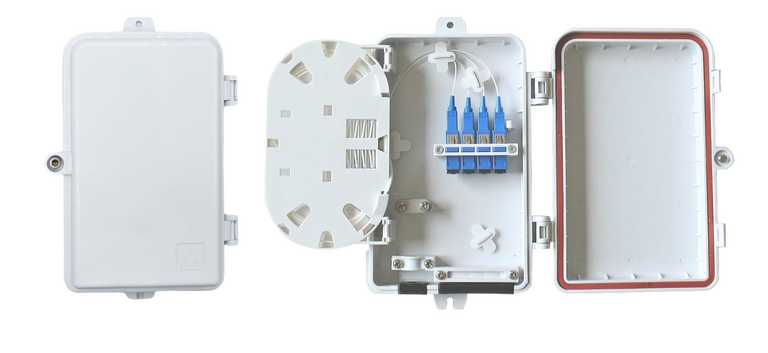

The FiberCore Optical Termination Box (OTB) – 4 Port Outdoor is a compact and durable fiber distribution enclosure engineered for FTTx applications that require secure optical termination in outdoor environments. Designed to support up to four SC simplex adapters, the enclosure integrates fiber splicing, termination, cable management, and optional PLC splitter installation within a rugged weather-resistant housing.


Constructed from high-strength UV-resistant ABS plastic, the enclosure offers reliable protection against dust, moisture, and harsh environmental conditions. Its compact wall-mounted design, combined with IP55-rated ingress protection, ensures dependable long-term performance for FTTH, FTTB, enterprise, and telecommunication network deployments.


  • Suitable for wall-mounted or pole-mounted installation
  • Supports up to 4 fiber terminations
  • Compatible with SC simplex or LC duplex adapters
  • Integrated splice tray for fiber fusion splicing and cable management
  • FTTH cable entry port for drop cable installation
  • High-strength ABS/PC housing with UV protection
  • Corrosion-resistant construction
  • IP55-rated dustproof and weather-resistant enclosure
  • Lockable enclosure for enhanced security
  • Internal routing guides provide organized fiber management and bend radius protection
  • Easy maintenance through snap-fit or screw-type cover



  • Fiber-to-the-Home (FTTH) access networks
  • Fiber-to-the-Building (FTTB) distribution
  • Telecommunication networks
  • CATV (Cable TV) networks
  • Data communication networks
  • Outdoor fiber distribution and termination points
SpecificationDetails
Model
FC-45-OTB-O4
Capacity
Up to 4 Fibers
Adapter Capacity
4 SC Simplex
Material
UV-resistant ABS Plastic
Color
White
Dimensions
190 × 125 × 40 mm
Cable Entry Ports
1
Splicing Support
1 Splice Tray (Up to 4 Fibers)
Protection Rating
IP55
Installation
Outdoor Wall Mount
Operating Temperature
-40°C to +85°C
Relative Humidity
≤95% (Non-condensing)
