CAT6A 23AWG F/UTP INDOOR CABLE
Solid PVC Cable
TIA/EIA 568.2-D • EN50173 • ISO/IEC 11801
CAT6A 23AWG F/UTP Indoor Cable is a shielded high-performance copper cable designed for reliable data transmission in commercial networks, data centers, and structured cabling applications. Featuring 23AWG solid bare copper conductors, foil shielding, and a durable PVC jacket, it provides improved protection against interference while supporting high-bandwidth transmission up to 500MHz for stable and efficient network performance.

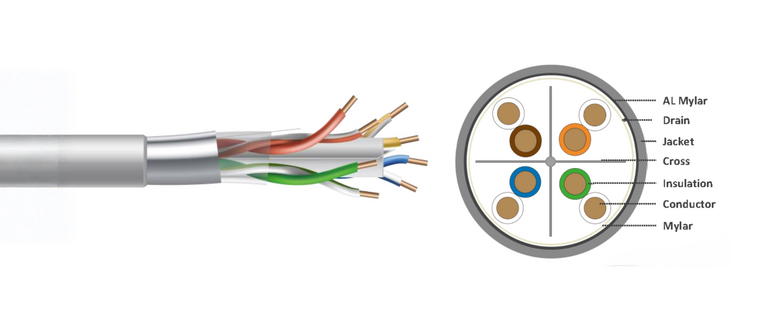

COMPONENT | SPECIFICATION |
Conductor | 23AWG Solid Bare Copper, 0.57±0.008mm |
Insulation | HDPE, OD 1.05±0.1mm, Min Thickness 0.26mm (REF) |
Central Element | OD 6.0mm (REF) + CROSS |
Drain Wire | 1/0.400±0.008, Tinned Solid Copper Conductor |
Jacket | PVC, OD 7.3±0.40mm, Average Thickness 0.55±0.10mm, Grey |
