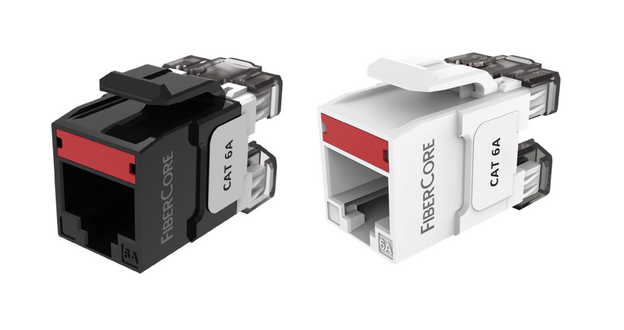

CAT6A UTP 180°

Keystone Jack

110 Punch Down Type, Black / White Color with Red Color Plate



CAT6A UTP 180° Punch Down Keystone Jack is a premium high-density connectivity solution designed for advanced structured cabling environments. Featuring a durable compact design, 4PPoE support, and reliable punch-down termination, it delivers enhanced performance and stability for data centers, commercial networks, and high-speed Ethernet applications.


  • Color plate for easy color management and user-friendly installation with unique clamp cap design
  • Separate wire peak design and pre-stuck slot for easy wiring
  • Supports 4PPoE applications and fits high-density patch panels
  • Press-fit technique for eco-friendly and solder-free installation


  • Keystone jack housing: ABS, UL94V-0
  • Spring pin: Phosphor Bronze, 50µ" Gold Plated
  • IDC house: PC, UL94V-0
  • IDC contact: Phosphor Bronze, Tin Over Nickel Undercoat
  • PCB: FR4, UL94V-0


  • Insulation resistance: 500 MΩ
  • Dielectric withstand voltage: 1000V AC
  • DC current rating: 1.5 Amps
  • DC resistance: 0.1Ω
  • Contact resistance: 20mΩ


  • Insertion life: 750 mating cycles with FCC compliant RJ45
  • Mating & un-mating force: Max. 20N
  • Contact force: 100 grams with FCC compliant RJ45 plug
  • Retention strength: 7.7kg between jack and plug
  • Plug retention force: 11 LBF MIN
  • Durability: 200 termination cycles
  • Operating temperature range: -10°C to 60°C
  • Storage temperature range: -40°C to 68°C
  • Humidity: 10%~90% RH
