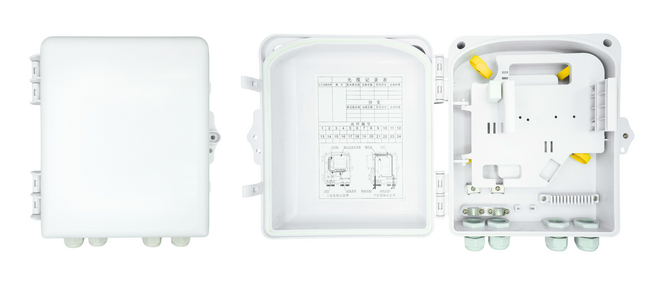

FIBERCORE NAP OPTICAL TERMINATION BOX –
TYPE A
The FiberCore NAP Optical Termination Box – Type A is a compact, high-performance outdoor optical fiber distribution enclosure designed for FTTx deployments. It provides a reliable solution for fiber splicing, termination, distribution, and optional PLC splitter integration within a durable weather-resistant enclosure.
Constructed from high-strength UV-resistant ABS plastic, the enclosure is engineered to protect fiber connections from dust, moisture, and harsh outdoor environments. Its organized internal fiber management system simplifies installation and maintenance while ensuring optimum fiber protection and signal integrity.
Supporting up to 24 fiber terminations, the Type A Optical Termination Box is ideal for Fiber-to-the-Home (FTTH), Fiber-to-the-Building (FTTB), and access network applications where dependable fiber distribution is required.
| Specification | Details |
| Model | FC-48-OTBNAP-A |
| Dimensions | 250 × 280 × 102 mm |
| Material | High-strength UV-resistant ABS Plastic |
| Fiber Capacity | Up to 24 Fibers |
| Splitter Support | 2 × 1:8 PLC Splitters or 1 × 1:16 PLC Splitter |
| Installation | Outdoor Wall Mount / Pole Mount |
| Protection | Dust-resistant and Weather-resistant Sealed Design |
DOME / VERTICAL
SPLICE CLOSURE
All Models: FC-46-DSC-48 | FC-46-DSC-120 | FC-46-DSC-144
The FiberCore Dome / Vertical Splice Closures are designed for outdoor fiber optic cable splicing applications requiring reliable protection, durability, and environmental resistance. Featuring a vertical dome design, these closures provide efficient space utilization while protecting fiber splicing points from water, dust, and harsh outdoor conditions.
Built with high-strength engineering plastic, the enclosure provides UV resistance, corrosion protection, and long-term durability. It is suitable for aerial, pole-mounted, wall-mounted, and underground installations, making it ideal for backbone, distribution, and access fiber networks.
Available in 48-core, 120-core, and 144-core configurations, the series provides flexible capacity options for different network deployment requirements.
Specification | 48 Port | 120 Port | 144 Port |
Model | FC-46-DSC-48 | FC-46-DSC-120 | FC-46-DSC-144 |
Dimension | 140 × 300 mm | 170 × 441 mm | 201 × 506 mm |
Weight | 1.9 kg | 2.8 kg | 3.1 kg |
Cable Diameter | Ø7–Ø18 mm | Ø7–Ø18 mm | Ø7–Ø18 mm |
Cable Entry Ports | 1 oval & 3 round ports | 3 in & 3 out | 1 oval & 3 round ports |
Splice Tray Quantity | 4 trays | 5 trays | 6 trays |
Maximum Capacity | 48 fibers | 120 fibers | 144 fibers |
Waterproof Grade | IP68 | IP68 | IP68 |
Sealing Structure | Heat shrinkable sealing | Sticky cincture | Sticky cincture |
